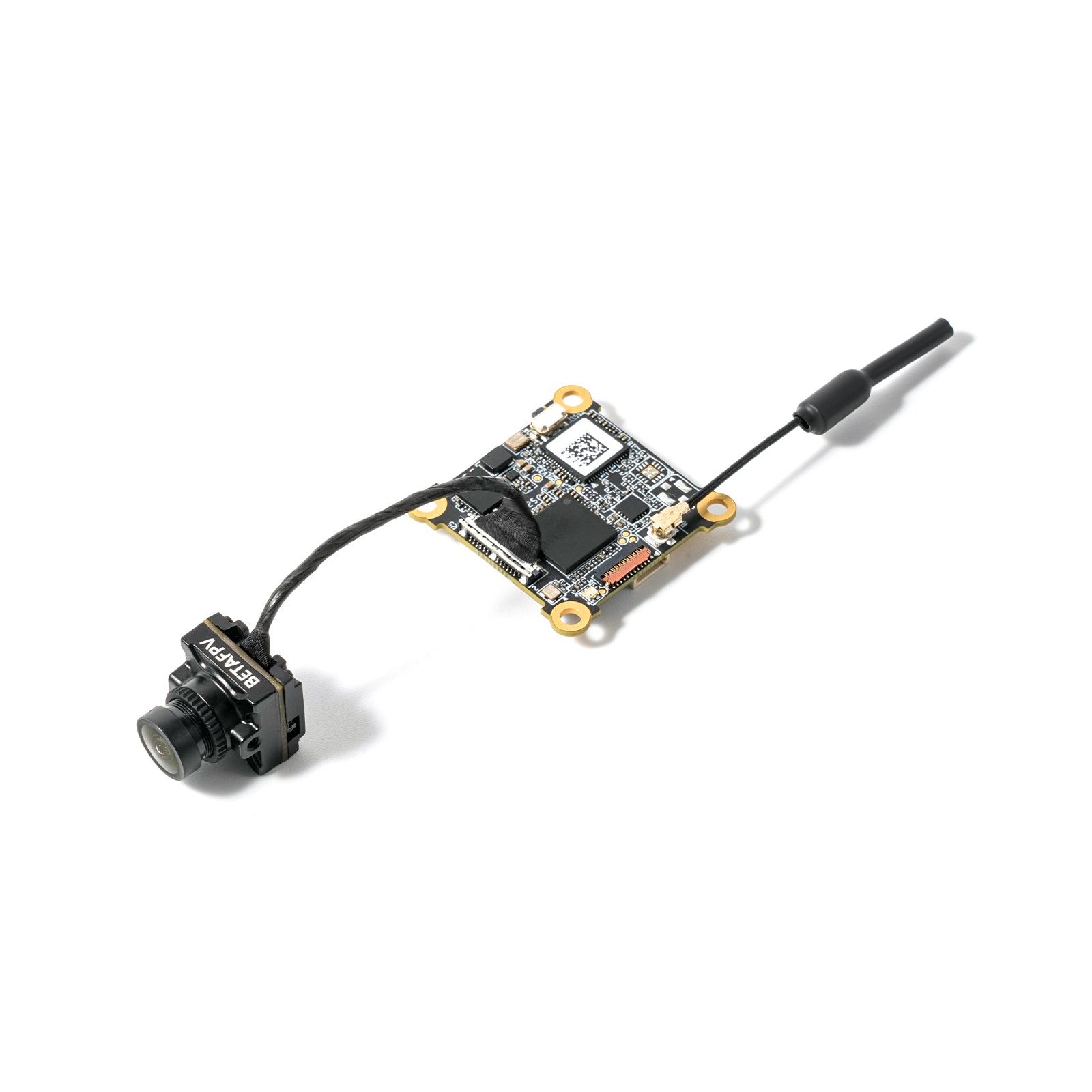

BetaFPV P1 Air Unit HD VTX

The P1 Air Unit HD VTX, part of the ArtLynk protocol ecosystem, delivers a stunning 1080p@60fps live feed with approximately 60ms latency and an impressive transmission range of over 5km. Its 1/2.9” CMOS sensor and wide 170° field of view provide an incredibly immersive and detailed perspective, making every flight intuitive and responsive. Designed for reliability in diverse conditions, the system maintains a stable, interference-resistant connection—whether weaving through dense forests or navigating complex urban environments.

Bullet Points

ArtLynk Protocol: A low-latency, long-range communication protocol for drones, offering superior stability and range over traditional analog VTX.
Lightweight & Affordable HD: Weighs just 6.8g, offering a compact and affordable HD VTX solution.
Reliable Video Transmission: Delivers smooth video with ~60ms latency and over 5km range.
Wide‑Angle 1080p Clarity: 1/2.9” CMOS sensor and 170° FOV for a crisp, immersive live view.
Plug‑and‑Play Compatibility: Standard 6‑pin port works seamlessly with Betaflight and BETAFPV flight controllers.

Specifications

Air Unit

Weight

Air Unit (Camera excluded): Approx. 3.61g
Air Unit (Camera included): Approx. 6.5g
Antenna: Approx. 0.44g

Mounting Hole Size

25.5*25.5mm

Mounting Hole Diameter

ø2.5mm

Dimensions (L*W*H)

Air Unit: 30*30*5.5mm

Camera: 14*14*17mm

Ports

SH 1.0 6-pin (FC)
SH 1.0 4-pin (USB)

VTX

Frequency

5.1-5.9 GHz

Effective lsotropic Radiated Power (EIRP)

＜200mW (FCC/SRRC)
<25mW (CE)

Video Transmission Range

>5km

Video Transmission Latency

Approx. 60ms

Live View Quality

1080p@60fps

Bandwidth

10MHz

Antenna

Single antenna

Channels

3
