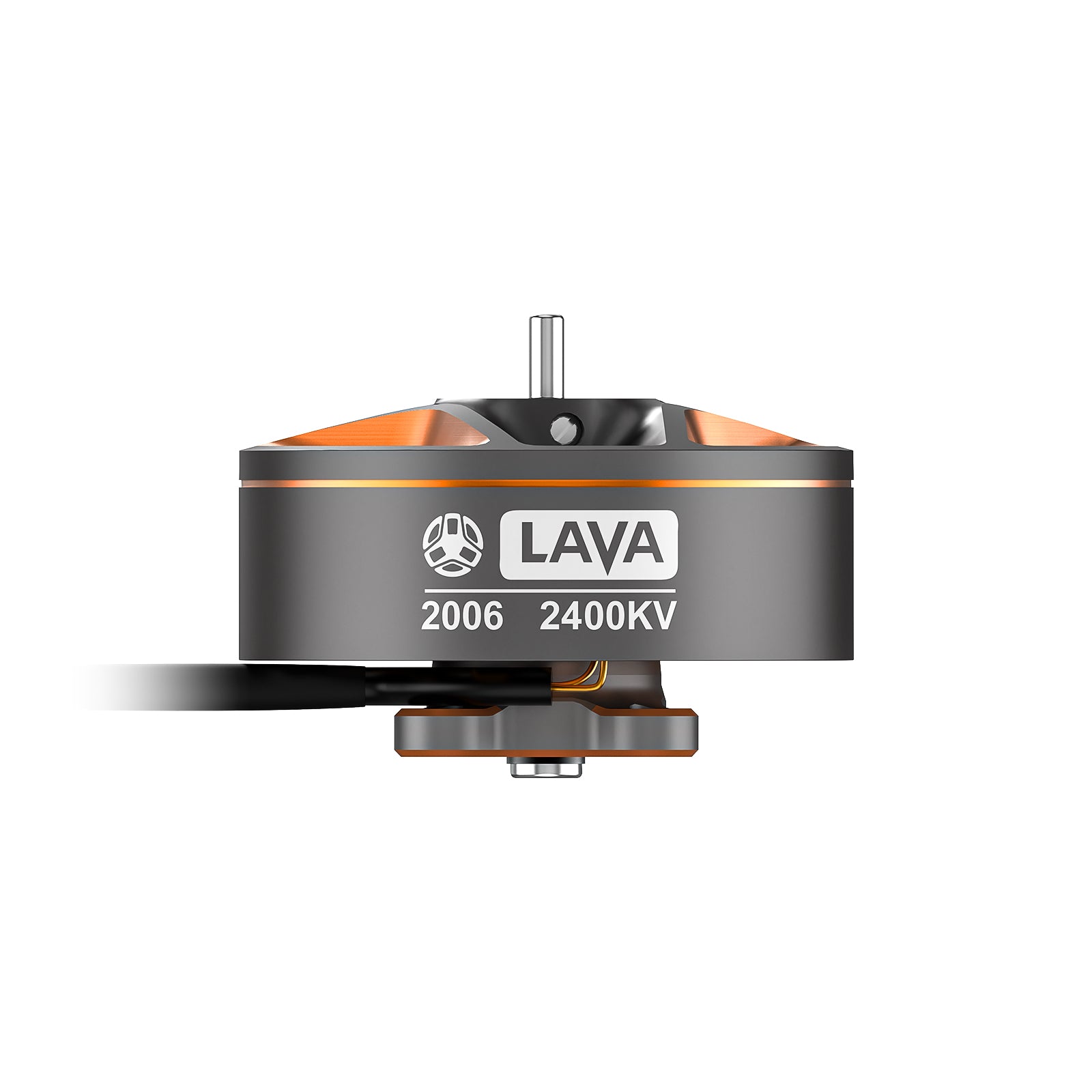

BetaFPV LAVA Series 2006 Brushless Motors

LAVA Series 2006 Brushless Motors is designed for the 6S 3.5” quads, with high agility and acceleration. Combined with GemFan D90S 3-Blade Propellers (1.5mm Shaft) and the F722 35A AIO V2 FC , it could offer pilots flexible control. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 6S 3.5” quads to a smoother and more stable flight level.

Bullet Point

Specifically designed for 6S 3.5” quads, this motor offers high agility and acceleration and features a high-performance 2400KV motor. Pilots enjoy flexible control and get more room for additional payload capacity.
These high torque motors feature GemFan D90S 3-Blade Propellers (1.5mm Shaft) to minimize prop wash oscillation and deliver lightning-fast responses, resulting in heightened thrust and power.
Perfectly matched with the F722 35A AIO V2 Flight Controller, this motor will bring pilots a powerful flight footage shooting experience with a 6S battery.

Specification

Items: LAVA Series 2006 Brushless Motors
Motor KV: 2400KV
Maximum Power: 563.82W
Maximum Current: 23.49A
Color: Gray mixed orange
Weight: 22.2g
Shaft Diameter: ø1.5mm
Shaft Length: 3.5mm
Wire Specification: 22AWG
Wire Length: 100mm
Motor Mounting Hole Size: 4*M2 Ø12mm
Propeller Mounting Hole Size: 2 *M2 Ø5mm

Recommended Parts

FC:  F722 35A AIO V2 FC

Props: GemFan D90S 3-Blade Propellers(1.5mm Shaft)

Battery: LAVA Series 6S 1100mAh LiPo Battery , 6S 1050mAh~1400mAh Battery
Quadcopter: Pavo35

Package

1 * LAVA Series 2006 Brushless Motors
4 * Hex Flat Head Screw M2*5
4 * Hex Flat Head Screw M2*7
