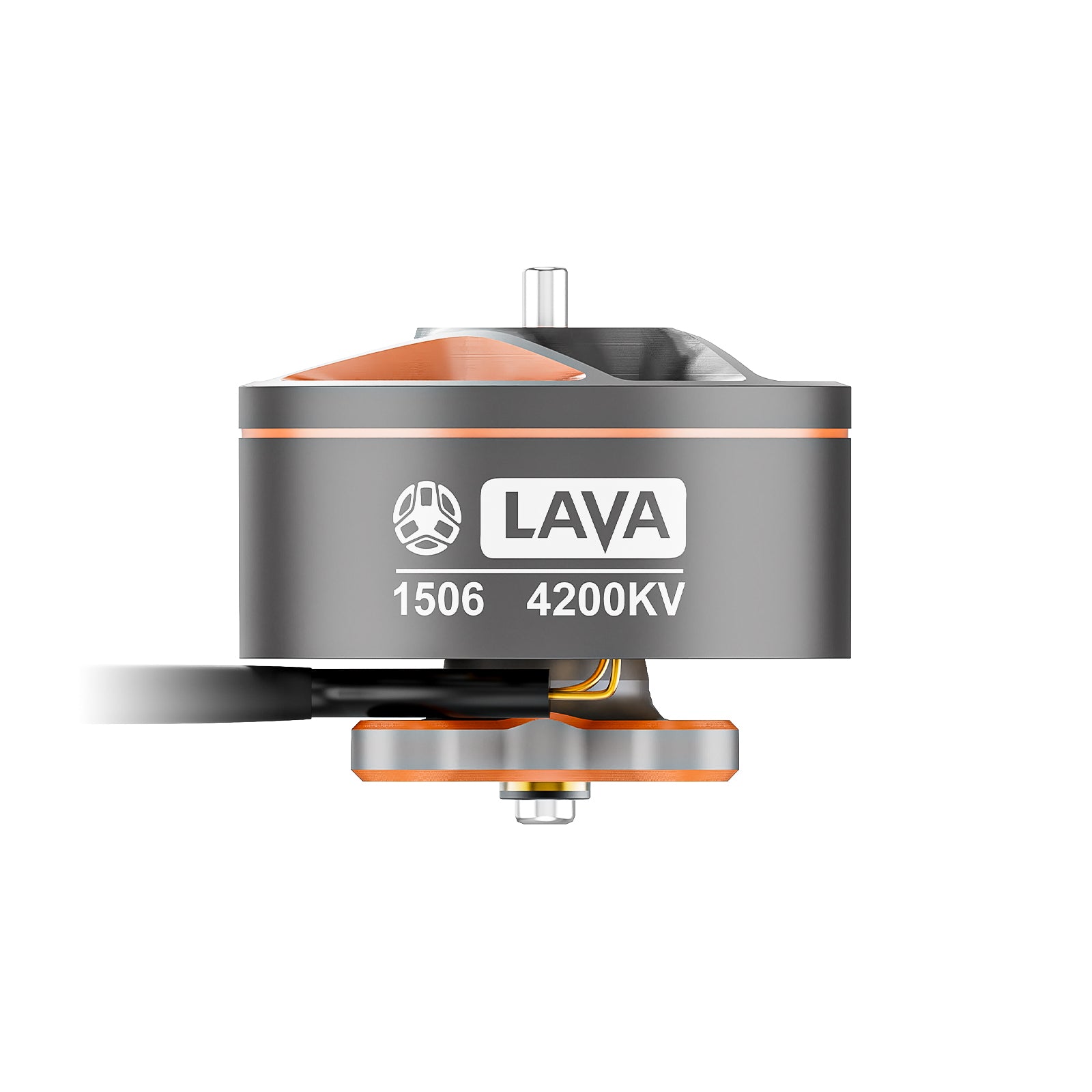

BetaFPV LAVA Series 1506 4200KV Brushless Motors

LAVA Series 1506 Brushless Motors is designed for the 4S 2.5” quads, with smoother torque output performance. Combined with the GF D63 3-Blade Propellers 1.5mm Shaft and the F722 35A AIO V2 Flight Controller , it could enable pilots to effortlessly freestyle. Easily meet competitively challenging drone competitions and professionally shot film creation needs, bringing you a superb flight experience and high-quality image output, leading the 4S 2.5” quads to preserve energy flight while more efficiency.

Bullet Points

The LAVA Series 1506 Brushless Motors are designed specifically for 4S 2.5” quads, providing a significant boost in power and taking our Pavo25 V2 Brushless Whoop Quadcopter to new heights.
GF D63 3-Blade Propellers 1.5mm Shaft will be the best match with LAVA Series 1506 Brushless Motors, which forms a highly efficient power system, guaranteeing powerful flight capabilities and reduced noise levels.

When paired with the F722 35A AIO V2 Flight Controller, the LAVA Series 1506 Brushless Motors lets pilots experience a powerful and thrilling flight.
Compared to the 1505 4600KV Brushless Motor, it boasts a 15g increase in maximum thrust, ensuring smoother and more efficient power output while conserving energy, and enhancing pilots’ overall flying experience.

Specifications

Items: LAVA Series 1506 4200KV Brushless Motors
Maximum Power: 313.44W
Maximum Current: 19.59A
Weight: 13.6g
Shaft Diameter: ø1.5mm
Shaft Length: 4mm
Wire Specification: 24AWG
Wire Length: 80mm/34mm
Motor Mounting Hole Size: 4*M2 Ø12mm
Propeller Mounting Hole Size: 4 *M2 Ø5mm

Recommended Parts

Props:  GF D63 3-Blade Propellers 1.5mm Shaft

Quad: Pavo25 V2 Brushless Whoop Quadcopter

FC:  F722 35A AIO V2 FC

Battery:  LAVA Series 4S 850mAh LiPo Battery , 4S 650mAh LiPo Battery

Package

1 * LAVA Series 1506 4200KV Brushless Motors
4 * M2 * 5 Hex Flat Head Screw
4 * M2 * 7 Hex Fl
